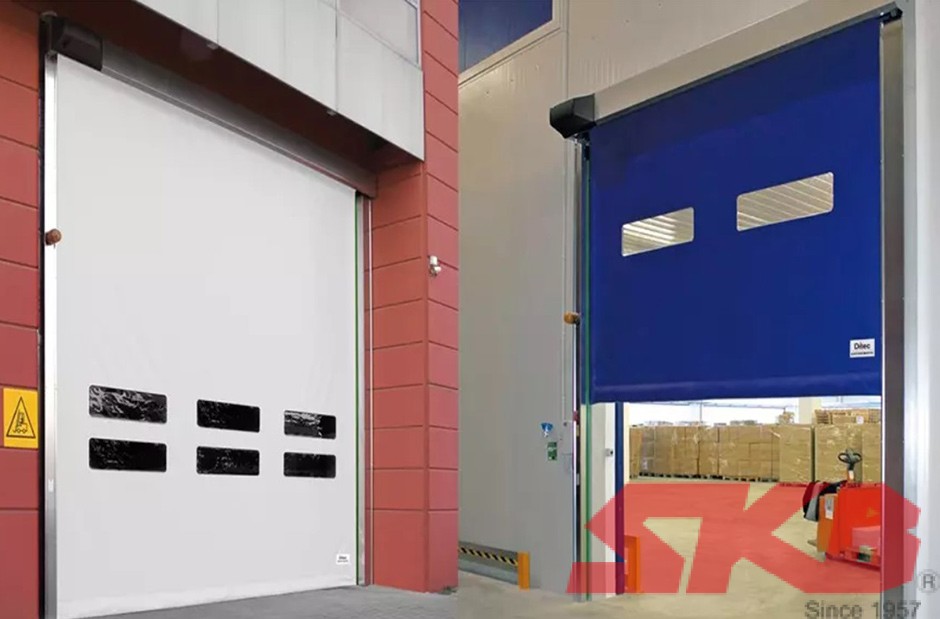

Self-Repairing PVC Roll Up Door
The SKB Self Repairing PVC Roll Up Door is equipped with impact-proof zip function. Its additional safety feature allows the curtain to break free from the zip guide when an impact is forced upon and automatically realigns when door resets.
The design aims to significantly reduces damage on curtains and extends the service life of the door.
Designed with SIOEN PVC sheets and Servo inverter motors for long-term durability and high frequency usage. Able to operate between 2500 – 3000 cycles a day.
Can be customised with or without vision panel or full transparent sheets for oncoming traffic control.
Variation
- Standard operation method using Wall-mounted Push Button Switch
- Optional operation method includes Pull Rope Switch, Radar Sensor, Magnetic Loop, Remote Control, Signal Lamp
- Curtain Colour Options: RAL 7004 Grey, RAL 1018 Yellow, RAL 2008 Orange, RAL 5010 Blue.
Specifications
| Motor | SEW/Servo |
| Input Voltage | Single Phase 220V 50Hz/3 Phase 415V 50Hz |
| Motor Capacity | 0.75kW-5.50kW |
| Opening Speed | Ranging from 0.6m per second-1.5m per second |
| Closing Speed | Ranging from 0.6m per second-1.0m per second |
| Inverter/AC Driver | Mitsubishi/Siemens/Shihlin |
| Revolving Encoder | TOFI (Incremental Encoder) |
| Construction | Frame & Box Covers: Galvanized Steel/304 Stainless Steel Guide Rails/Track: Aluminum Extrusion/Galvanized Steel/304 Stainless Steel Curtain: SIOEN High Strength Polyester Textile Fibre with Self-Repairable Zip Vision Panel: 1.5mm Transparent PVC Sheet Wind Resistance Bar: Aluminum Extrusion Strips |
| Curtain Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm |
| Control Box | Powder Coated/304 Stainless Steel |
| Safety Class | IP55 |
| Wind Resistance | Class 5-8 (Beaufort Scale) |
| Tolerance Frequency | Twice per minute, inverter opening up to 2500-3000 cycles per day |
| Safety Features | Infrared Photoelectric Sensor, Battery Operated Wireless Safety Bottom Edge, Emergency Stop |
| Standard Control Mode | Push Button Switch |
| Optional Control Mode | Pull Rope Switch, Remote Control, Magnetic Loop, Radar Sensor, Signal Lamp |
| Emergency Operation | Manual Hand Crank |
| Average Operating Life Cycle | 500,000 cycles |
| Working Temperature | -25 - 65 degress Celsius |
