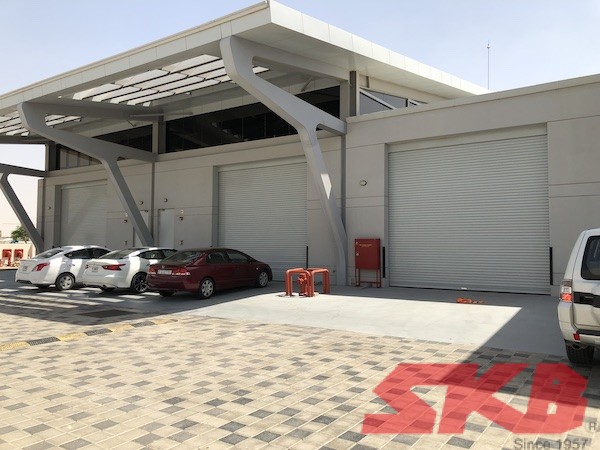

Double-Wall Roller Shutter
- Normal to High Travelling Speed – 500mm per second
- Strong & High Wind Resistance – 100 to 220km/h wind speed
- Excellent Air Tightness for weather-proof and clean room applications
- Sound Insulation up to 32dB
- High Performance – Security Barrier, Riot Protection, Sandstorm, Harsh Weather and Weapon Storage Door
- Drive system designed up to 30 years useful life
- 100 Cycles per minute with air-cooled motor
- Safety features include obstruction detection sensor
Click here to download brochure.
Variation
- F7D
- F7D Double-wall Galvanised Steel
- F7DA Double-wall Aluminium
- F7DAA6 Double-wall Aluminium 6mm
- F100DA
- F100DA Double-wall Aluminium
- F100DAV with Transparent Vision Panel
- High Performance
- F100DASS Anti-Sand Storm Design
- F100DAT with Thermal Break for Insulation
Specifications
- Drive Barrel Pipe
- BS Standard Welded Steel Pipe of 250mm Diameter with 50mm Solid Steel Shaft and Bearing Blocks
- Finishing
- Natural Finish
- Powder coated to 5-stage Pre-treatment with Architectural Grade quality and double oven-curing process
- Motor Drive Unit
- Power Source: 230v Single Phase 50 Hz or 415v 3 Phase 60 Hz
- Motor with Manual Hand Crank or Endless Chain Override
- Operate via Push Button or Auto Close when receive 24vDC Fire Signal
Smooth Closing Bottom Bar
- Model: SKB-SPB-80
- Long lasting Santoprene Extrusion to seal gaps for uneven floors
- Equipped with Built-in Safety Sensor Slot
- Optional
- Customisable Speed & High Speed Operation: 70, 100, 150, 200, 300, 400 and 500mm per second traveling speed
- Wind Resistance Performance: 60, 100, 150 and 200km/h
- Safety Sensor: Available in options of Infrared Light Curtain, Single Beam Infrared Sensor, Bottom
Edge Air Sensor and Tape Switch Sensor - Operation Method: Push Button, Wireless Secured Remote Control with Patented Rolling Codes,
Wireless Push Button Wall Switch, Radar Sensor, Vehicle-only Detection Sensor, Digital Keypad Access - For extra large openings – able to customise removable sliding mullion
- Safety Brake Arrester for Safety Prevention – Prevent roller shutters from sudden descend
Optional Features
Powerless Fail-Safe Flood Shutter
No Back-Up Power Required
Link to Disaster Operation Centre for Flood Warning Signals
Reusable and…
Transparent Shutter (Malaysian Patent No. MY-128431-A)
Our patented VISION-7 ® transparent roller shutters enhances visibility and security over commonly used aluminium…
